• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Jewel Effect Headlamps
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear

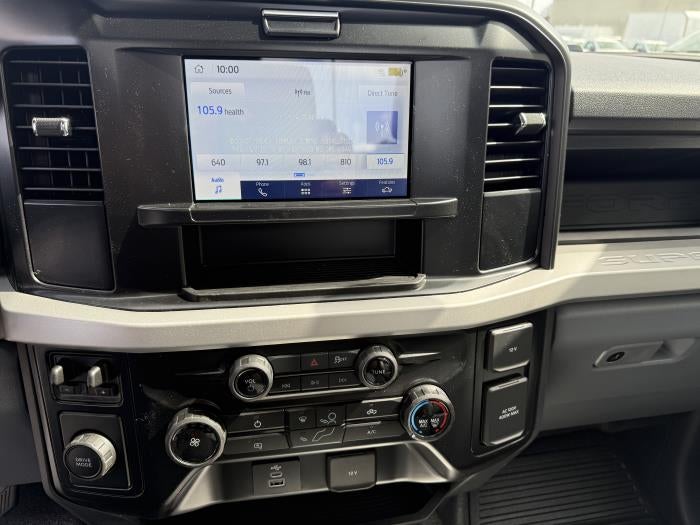

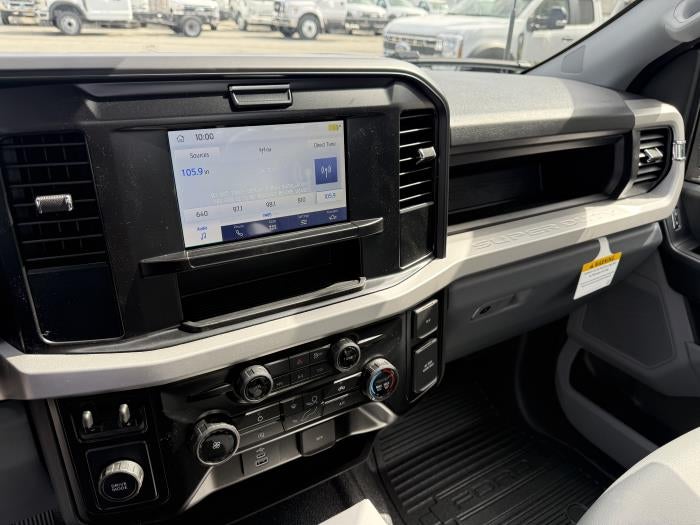

• Sync4 W/8" Screen

• 1Touch Dwn Dr/Pass Window

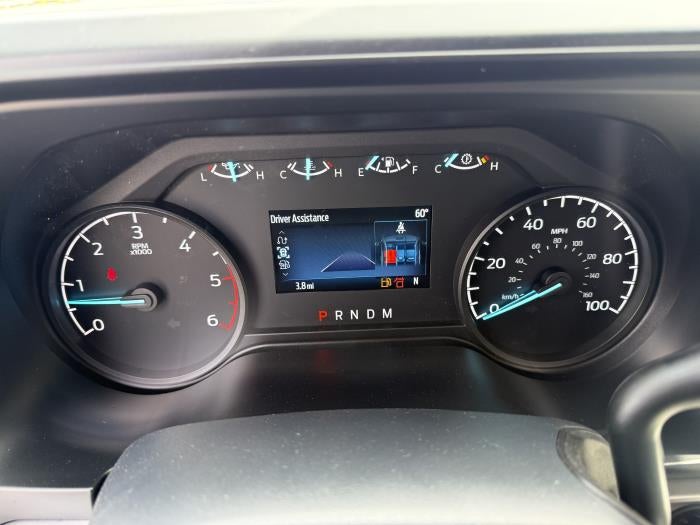

• 4.2" Cluster Display
• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter

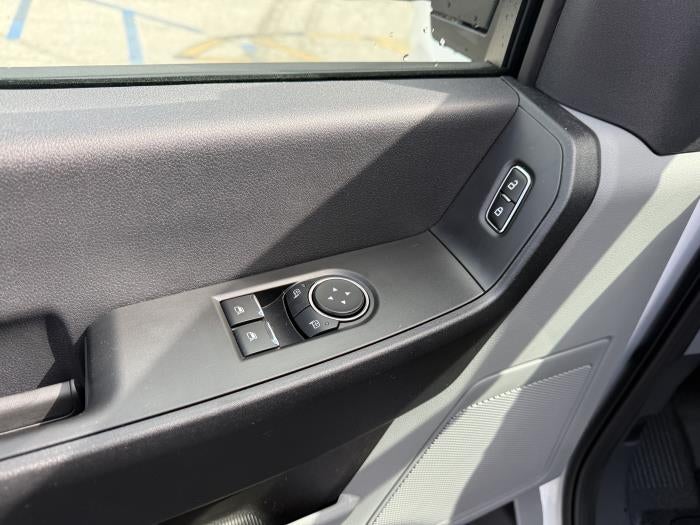

• Power Locks And Windows

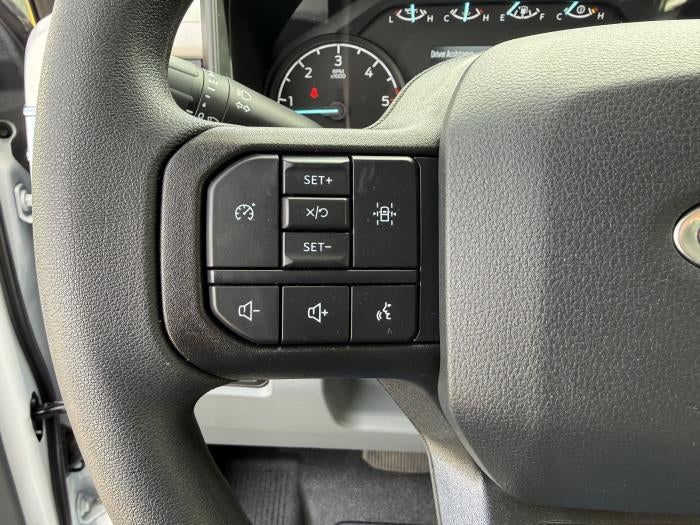

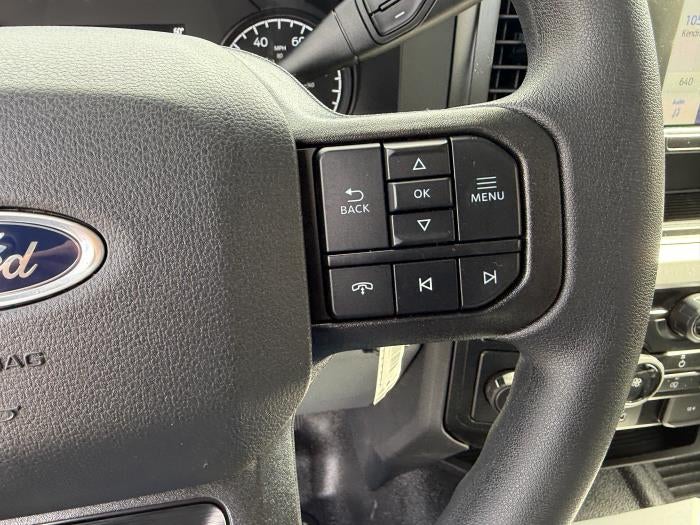

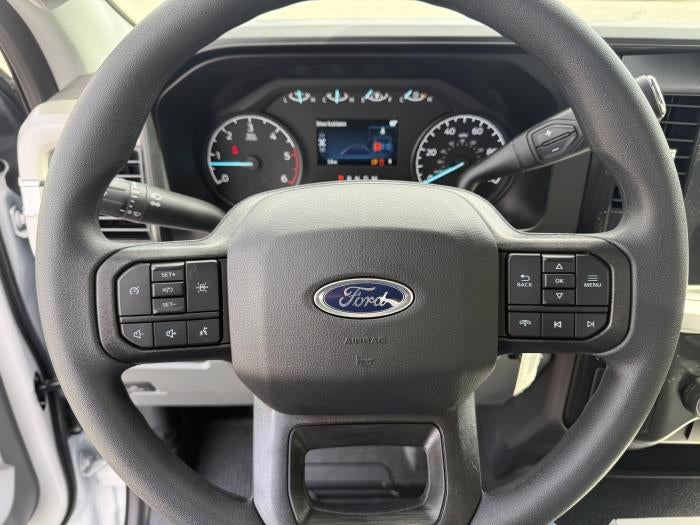

• Steering:Tilt/Telescope, Cruise & Audio Controls

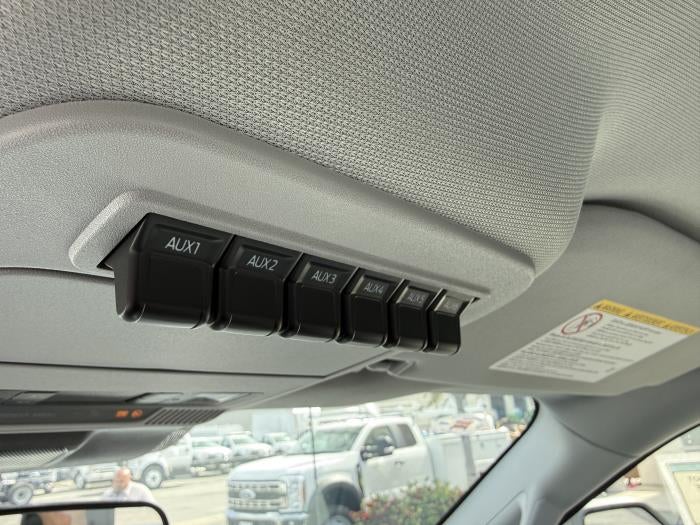

• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

640A

Power Equipment Group

Ford Connectivity Package (One-time purchase – 7 years)

Ford Security Package (1-year Included with activation)

XL Chrome Package

Ford Connectivity Package (1-year included)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 5893
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 10300
• Curb Weight - Front (lbs): 3290
• Curb Weight - Rear (lbs): 2603
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 23500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1640
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4050
• Maximum Trailering Capacity (lbs): 16400
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 10300
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5300
• Axle Capacity - Rear (lbs): 10300
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Front Tire Capacity (lbs): 5820
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 50.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 230.7
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 79.3
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): 8.4
• Ground Clearance, Rear (in): 8.4

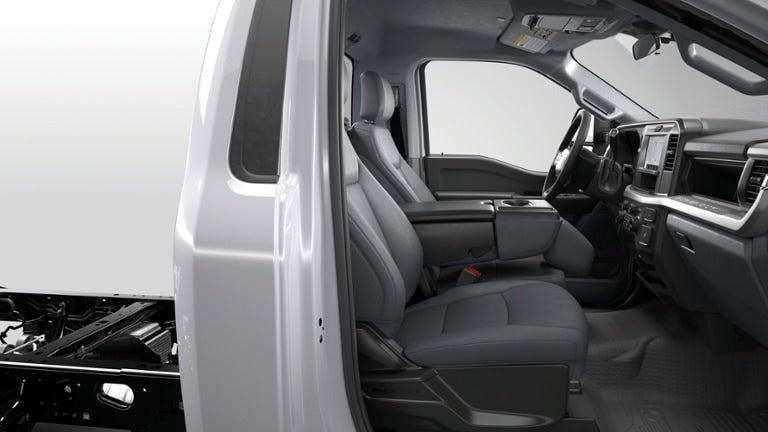

• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Summary

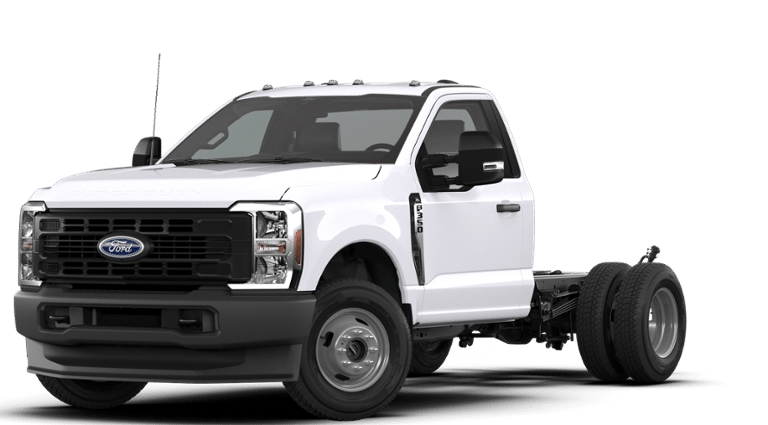

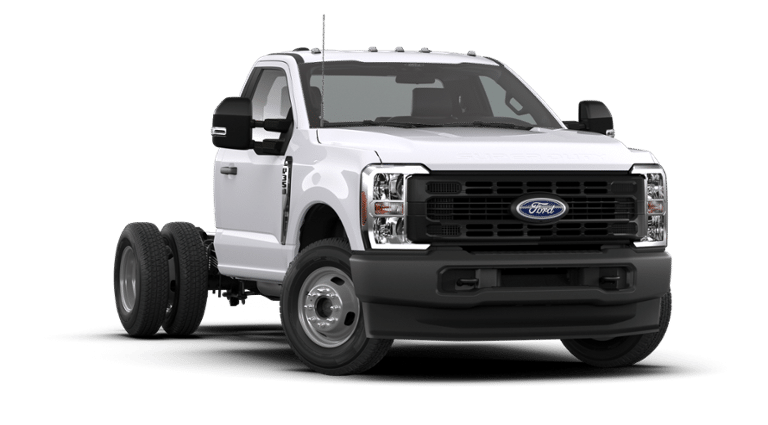

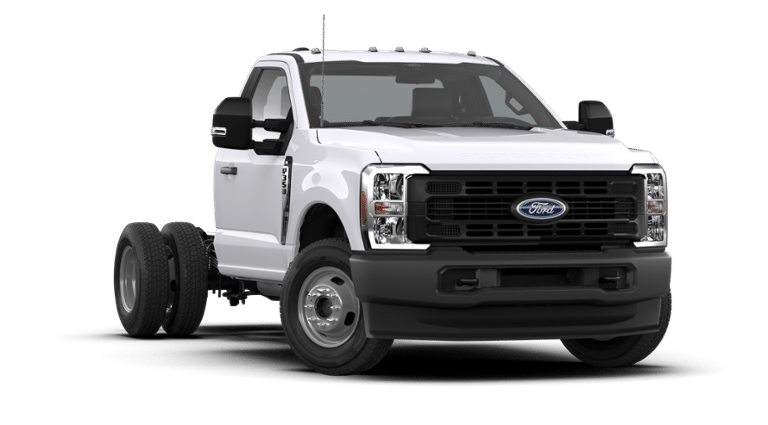

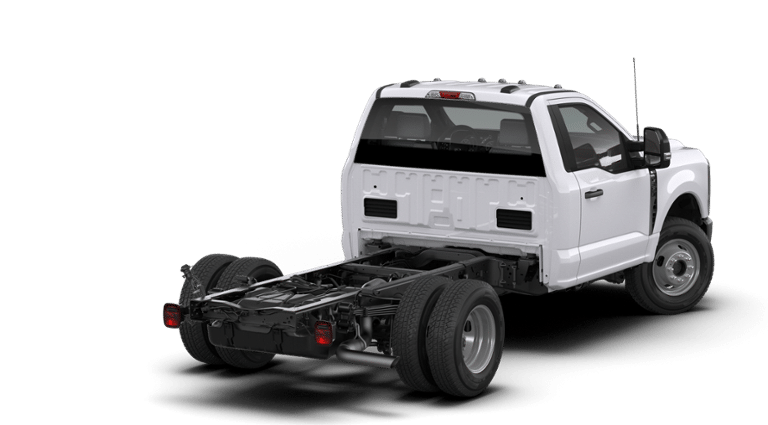

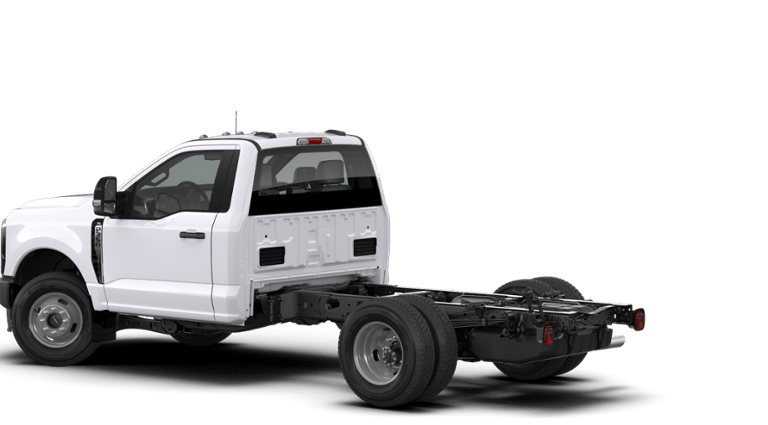

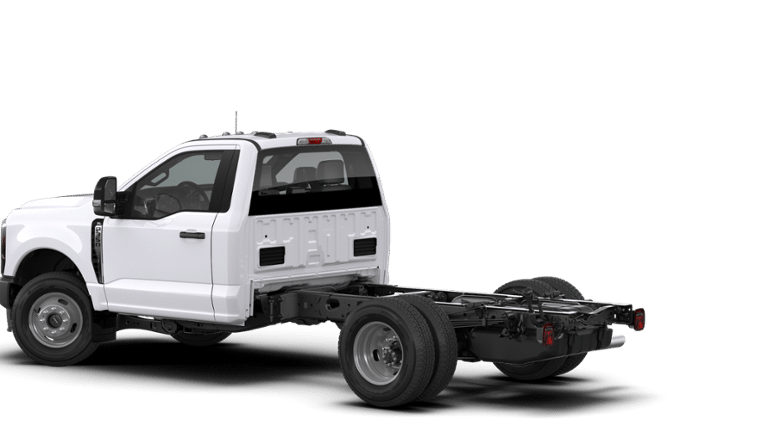

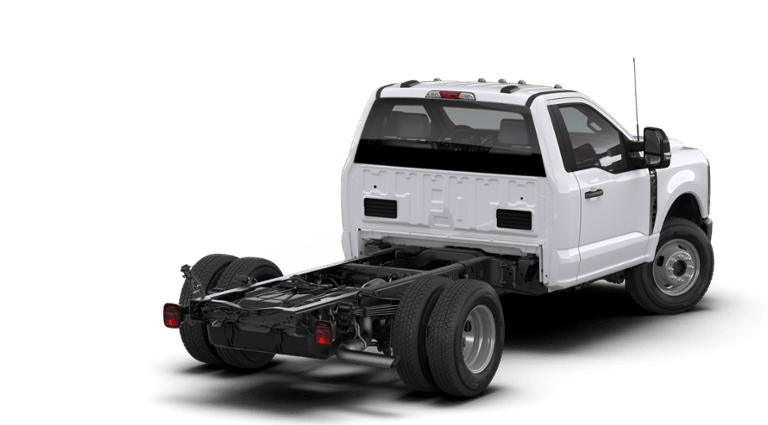

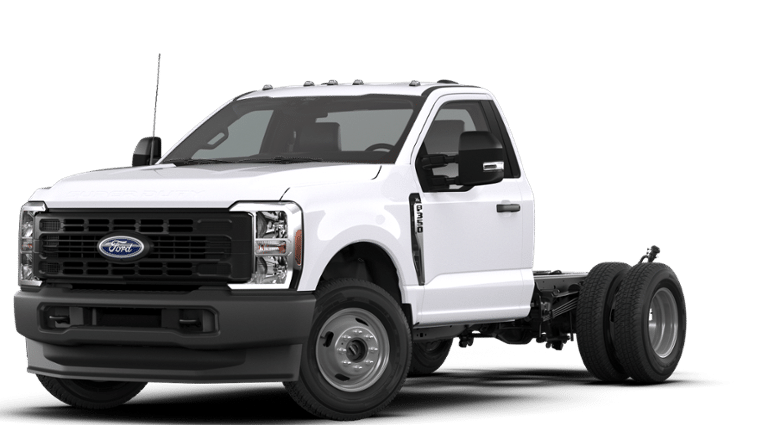

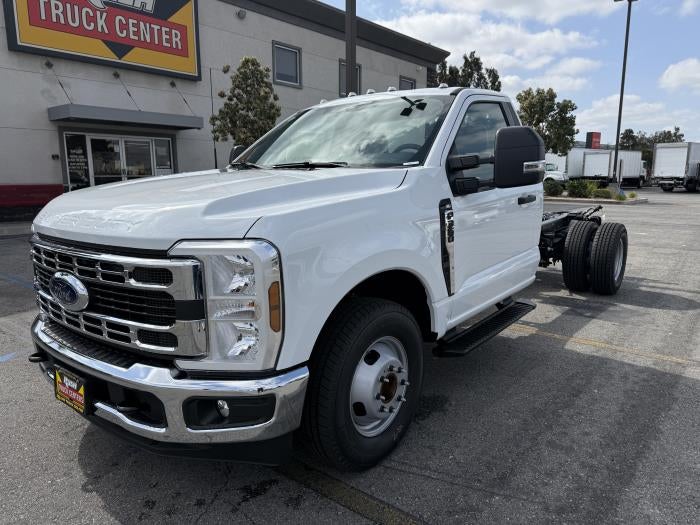

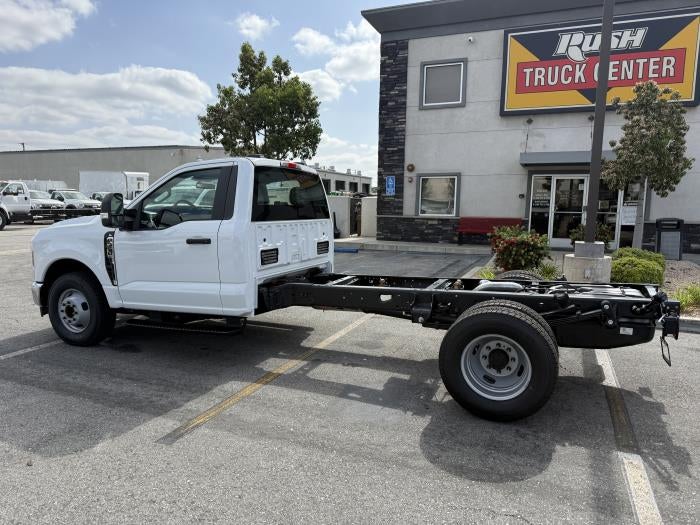

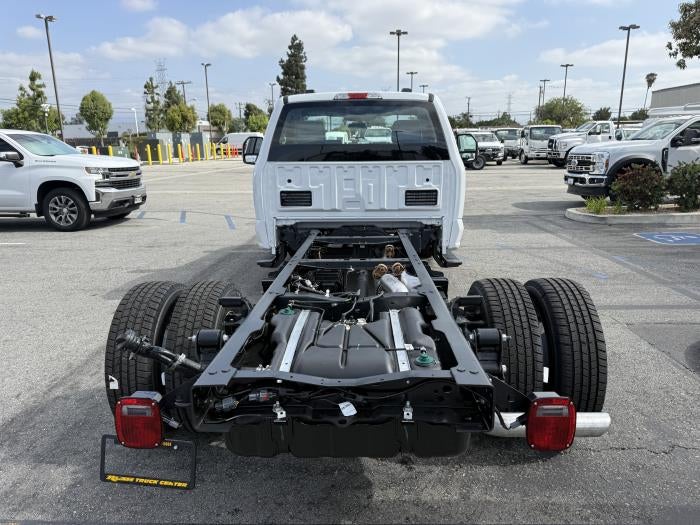

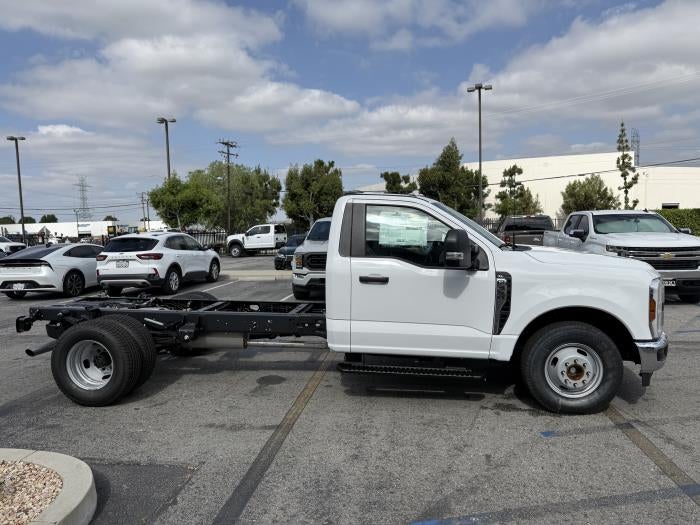

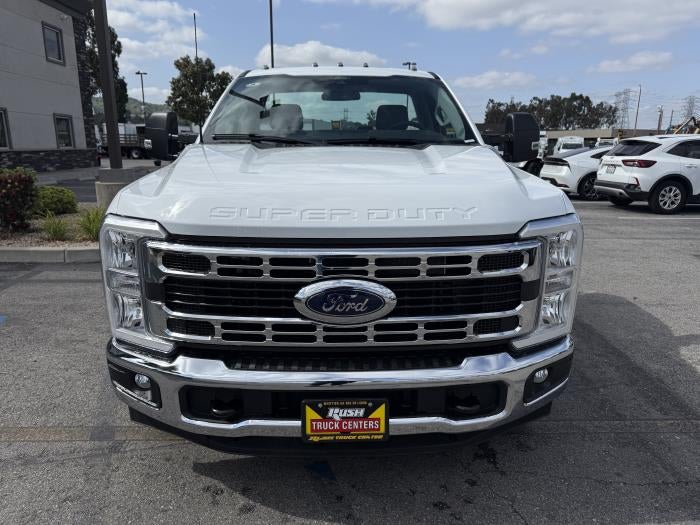

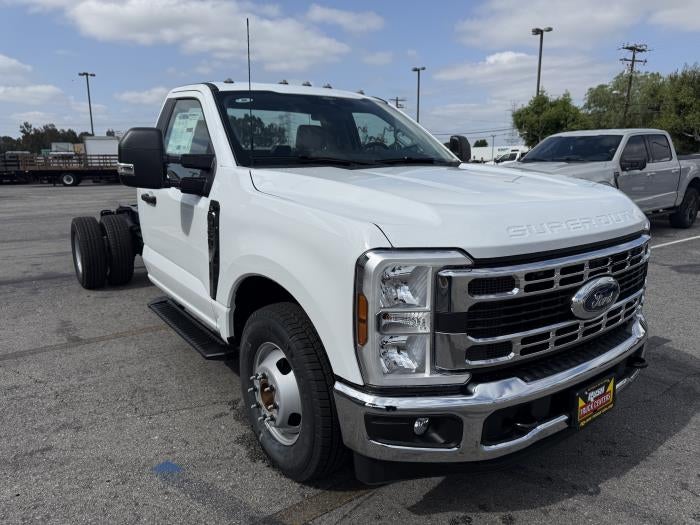

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Regular Cab
• Body Code: H
